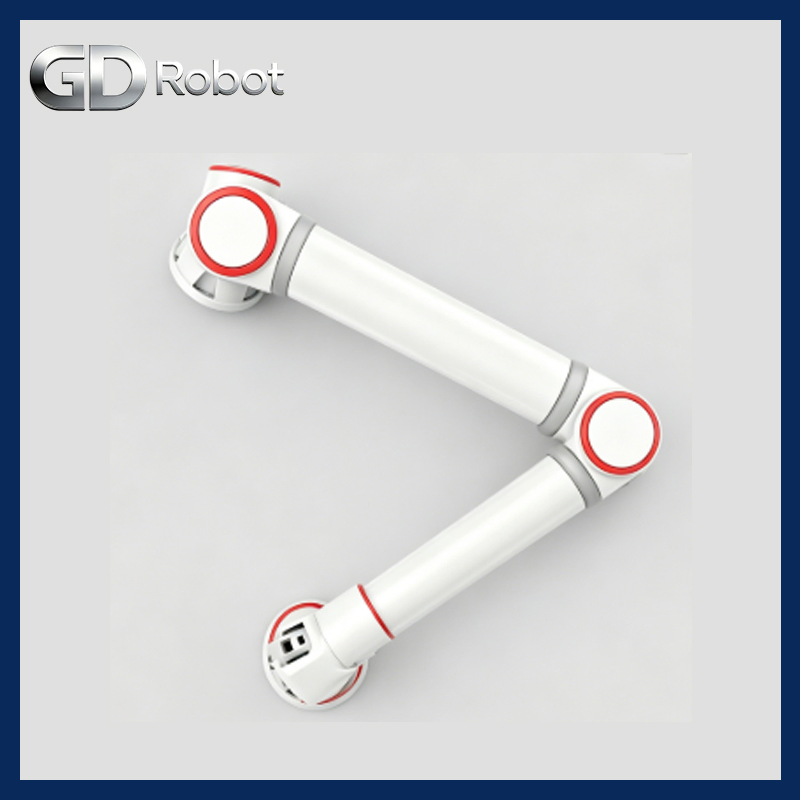

Sandai Robot
1 / 5
| Model NO. | GD-20 |
| Drive Mode | Electric |
| Payload Capacity | 20kg (Max: 25kg) |
| Reach | 1854mm |
| Pose Repeatability | ±0.1mm |
| IP Classification | IP54 (IP65 Optional) |
| Noise | <70db |
| Typical TCP Speed | 2m/S |

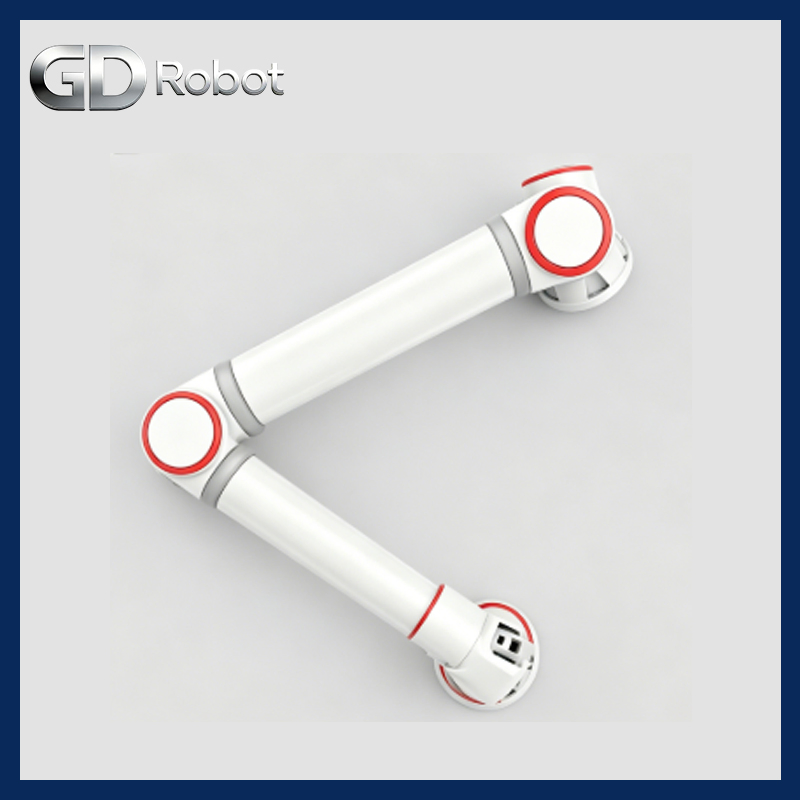

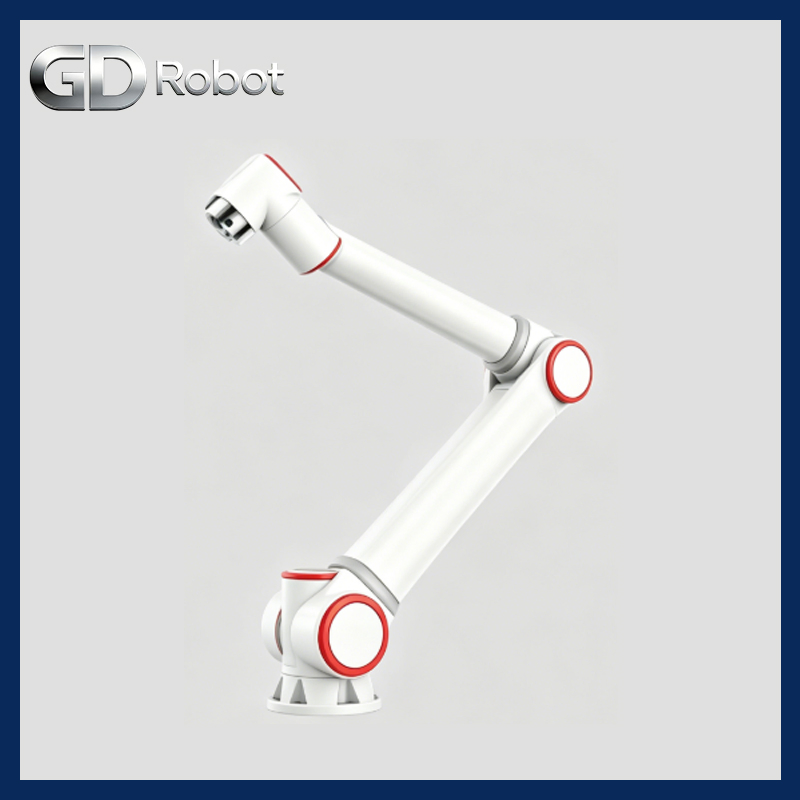

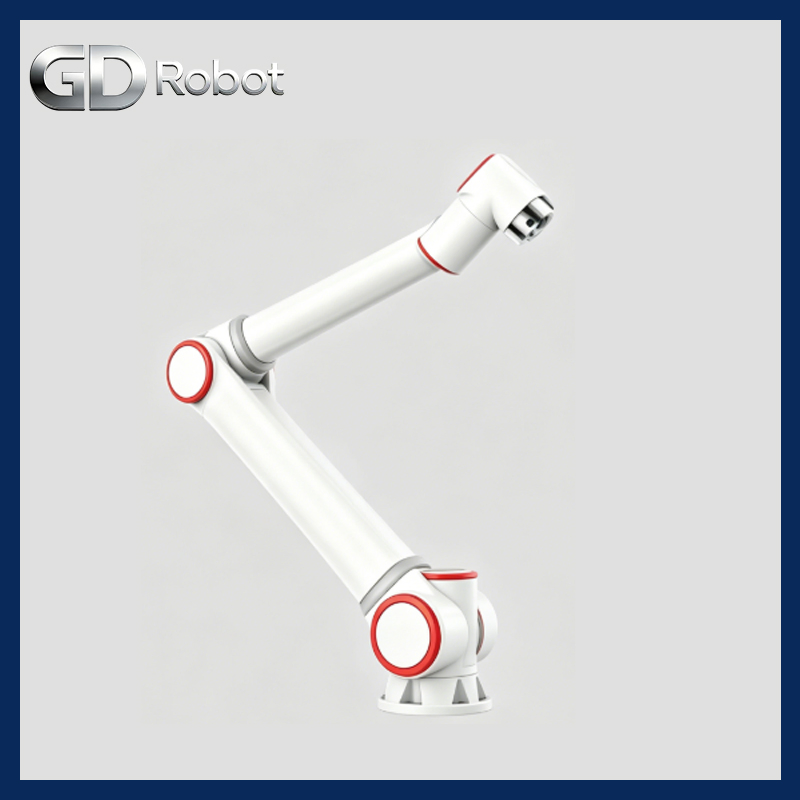

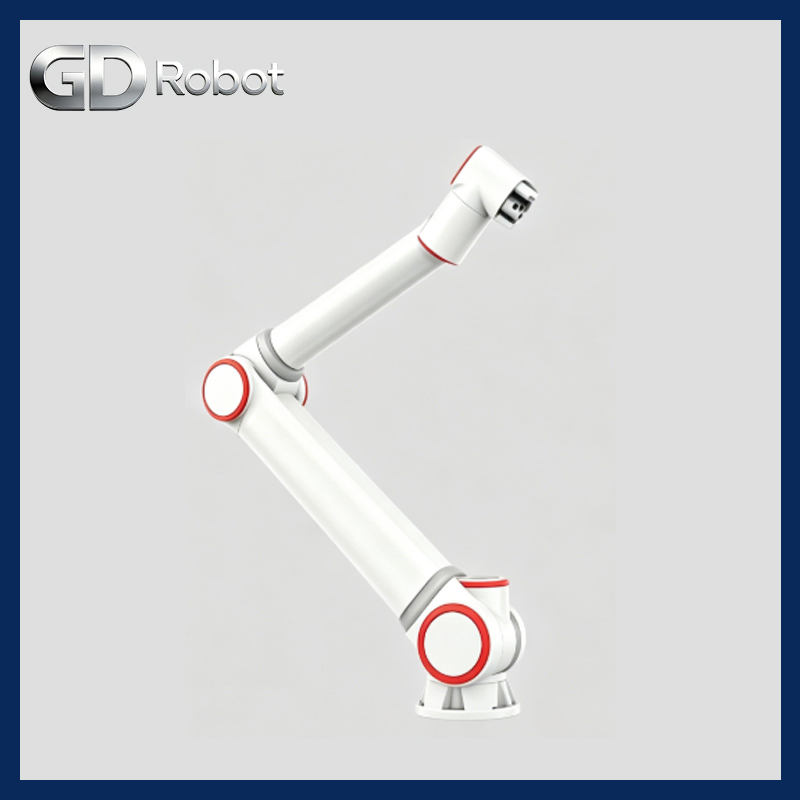

1. Payload 20kg collaborative robot arm with 1854mm reach, ideal for heavy workshop loading tasks.
2. High payload cobot with max 25kg capacity, stable for industrial handling applications.
3. ±0.1mm repeatability ensures high precision for assembly and loading operations.
4. IP54-rated design supports any mounting orientation for flexible loading integration.
5. <70dB low noise operation, suitable for continuous use in production environments.
| Degrees of Freedom | 6 rotating joints |
| HMI | 10.1 inch teach pendant or mobile terminal |
| Axis Movement (Base) | ±175° / ±120°/s |
| Axis Movement (Shoulder) | +85° / -265° / ±120°/s |
| Axis Movement (Elbow) | ±160° / ±120°/s |
| Wrist 1 / 2 / 3 | Up to ±180°/s |
| Operating Temperature | 0-45°C |
| Power Supply | 24V / 1.5A Tool I/O |
| Typical Average Power | 620W |
| Materials | Aluminium, Steel |
| Package Size | 135.00cm * 60.00cm * 60.00cm |
| Package Gross Weight | 100.000kg |
| Lead Time | 10 days (1 - 1 Pieces); To be negotiated (> 1 Pieces) |
