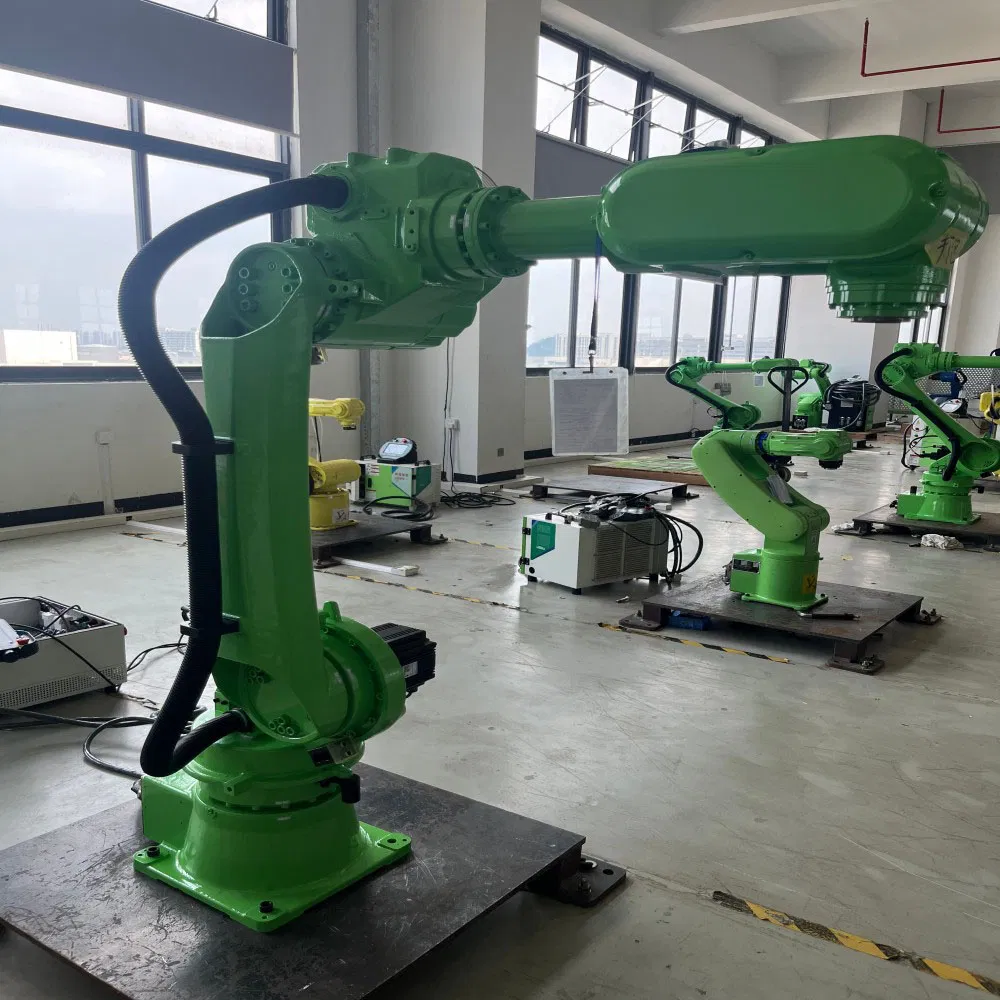

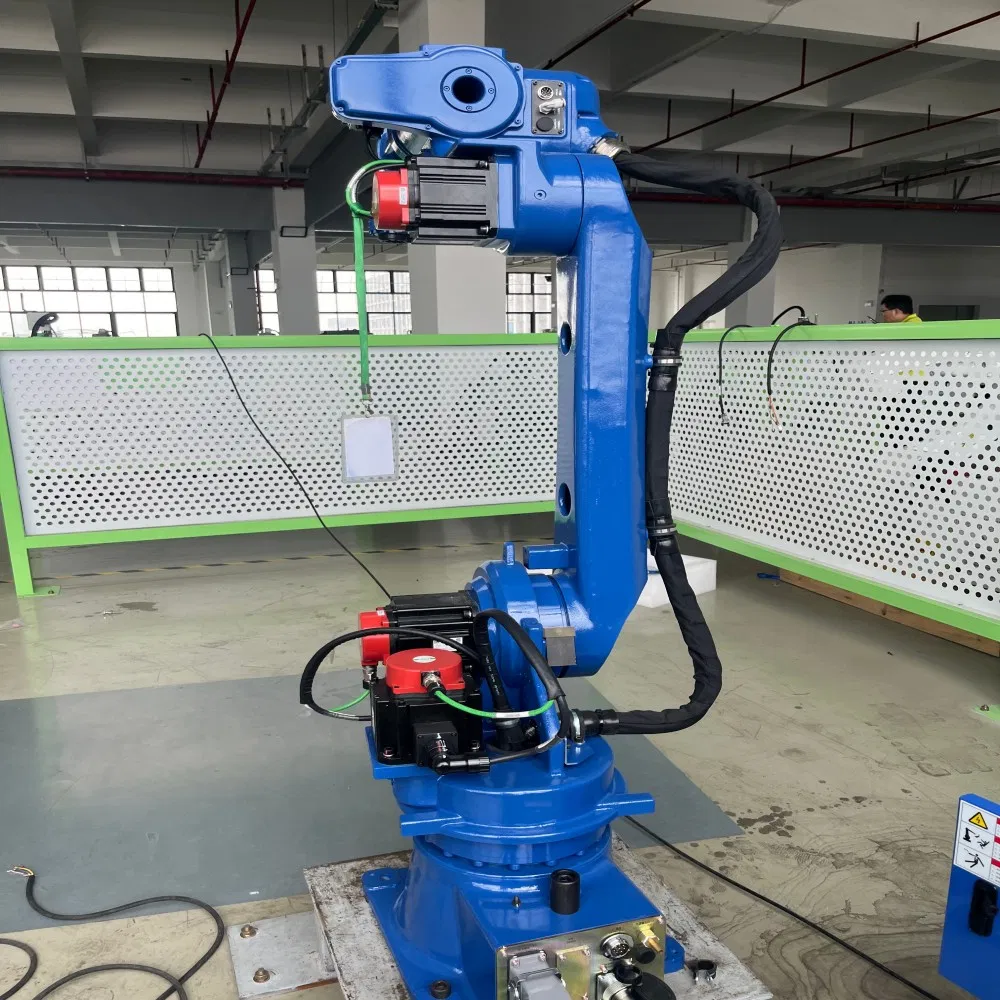

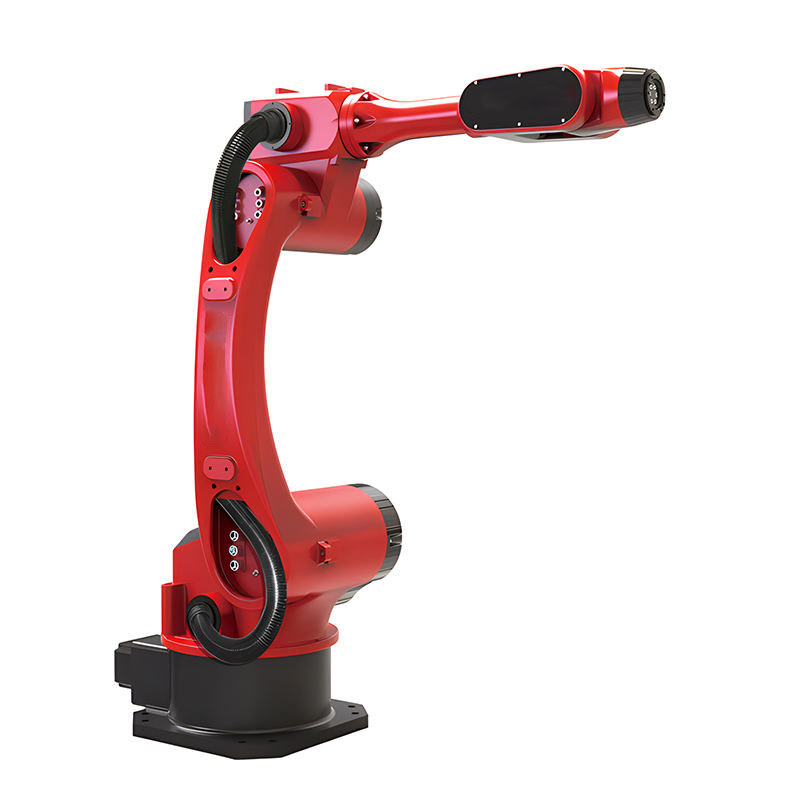

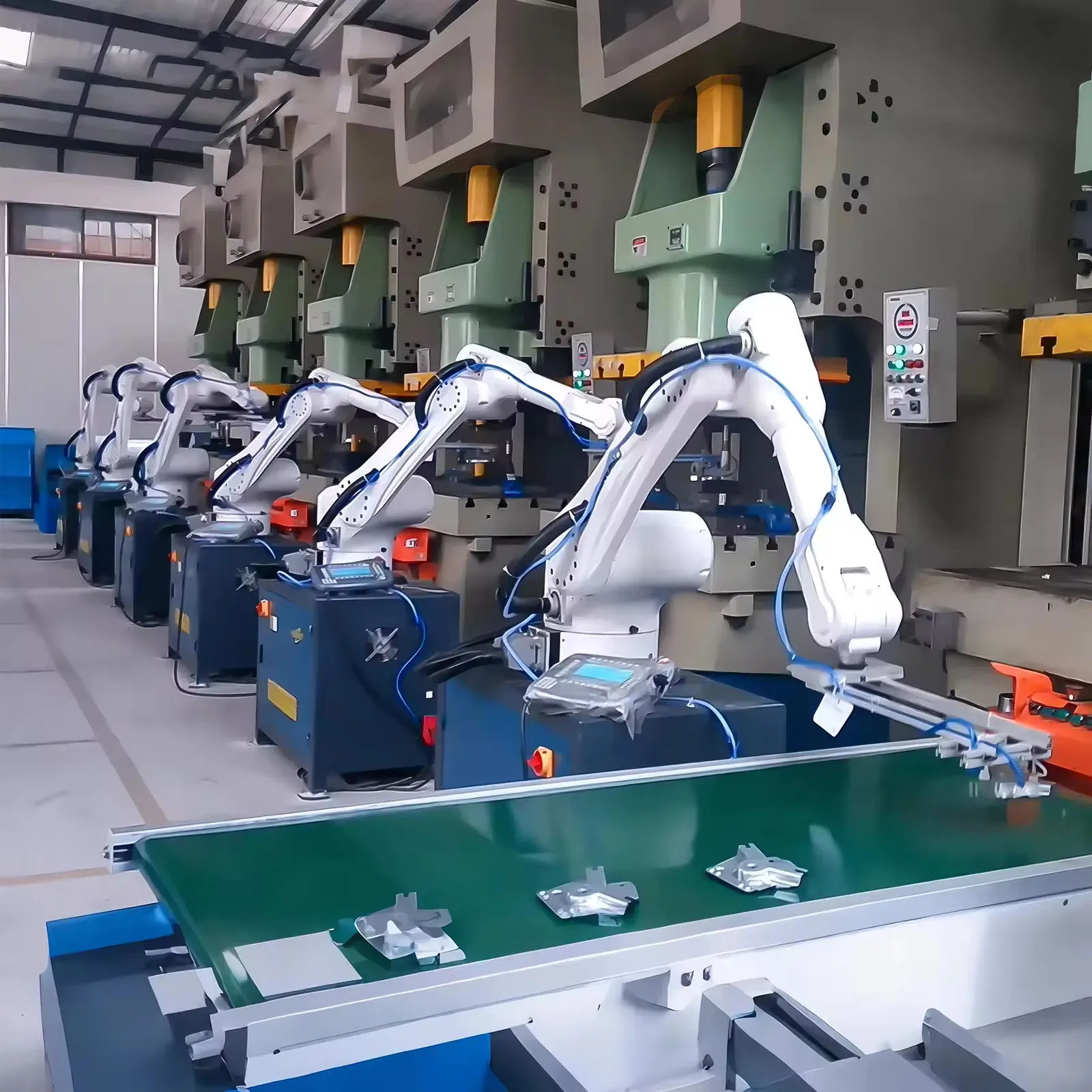

Articulated Robotic Welding System revolutionizes industrial manufacturing with precision-engineered automation. Our 6-axis jointed-arm robots deliver exceptional flexibility and repeatability (±0.02mm), ideal for complex welding tasks in demanding environments. Integrated with smart vision systems and IoT-ready controllers, this solution ensures seamless integration into existing production lines.

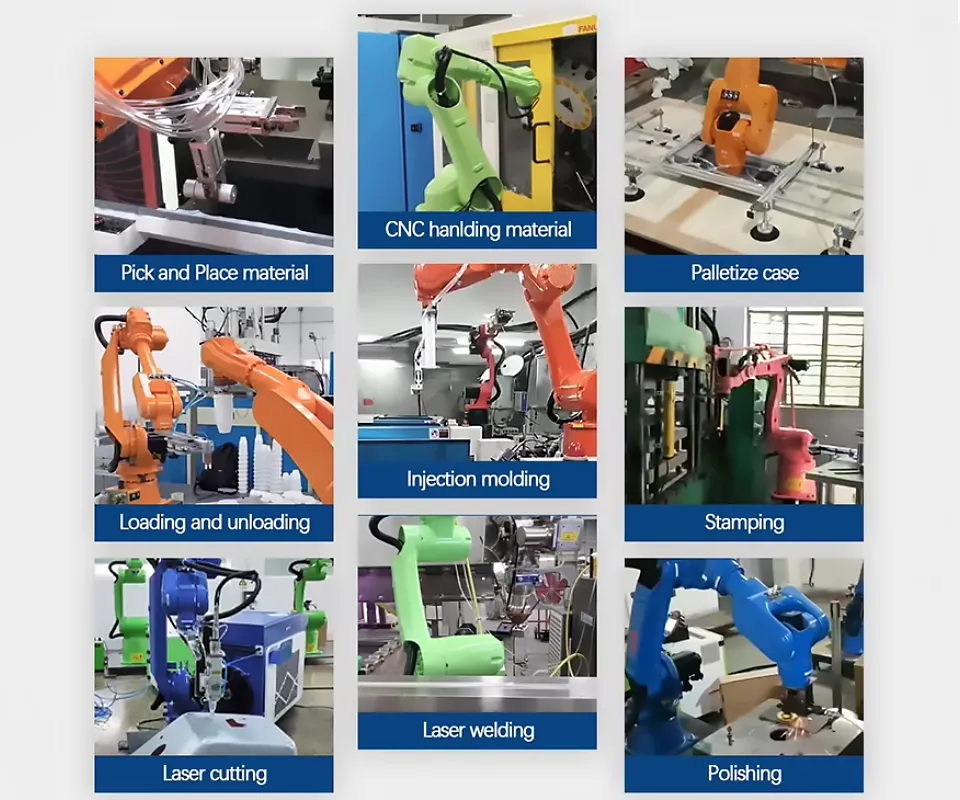

Collaborative robots combined with end-to-end integration, have formed a complete product matrix. They have been successfully explored in various application scenarios, such as welding, cutting, screw locking, gluing, spraying, warehousing and sorting in the field of industrial automation, education, medical care, smart agricultural picking and new retail, and are committed to serving all walks of life.
| Application | Pick and place/welding/polishing/gluing/other |
|---|---|
| Condition | New |
| Warranty | 1 year |
| Style | Collaborative |
| Advantage | Safer work/flexible deployment/easier operation/ROS support |
| Storage | 2GB |
| Teaching Box | Full keyboard+touch screen, mode select switch, safety switch, emergency switch |
| No. of Controlled Axis | 6+6 axis, 6 basic axes + 6 external axis |
| Interface | Multiple encoder signal interfaces, dedicated interface for robot terminal, Ethernet interface, serial communication. |
| Safety Module | Emergency and robot anomaly signals linked for rapid stop |
| Mode of Operation | Teaching, representation, remote control |
| Programming | Online teaching, process programming, teaching by dragging |
| Motion Function | Point-to-point, linear, circular |
| Anomaly Detection | Emergency stop, servo anomaly, anti-collision, safety maintenance, arcing anomaly |
1. Structural optimization algorithm suitable for the body control of various types of structure.
2. Open structure for synchronization of international technology and extension of functions.
3. Software PLC functions facilitate logic control. Process functions make programming easy.
4. Modular setting of functions suitable for diverse applications. Safety module ensures safe production.
5. Suitable for multiple increments; absolute servo. Improved computer bus connection ensures reliability.
