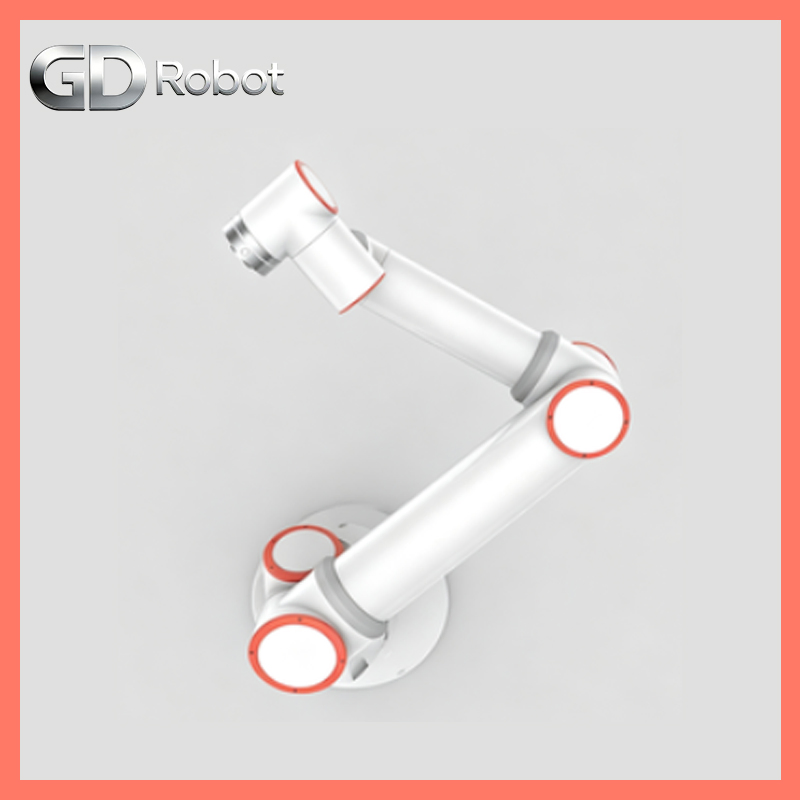

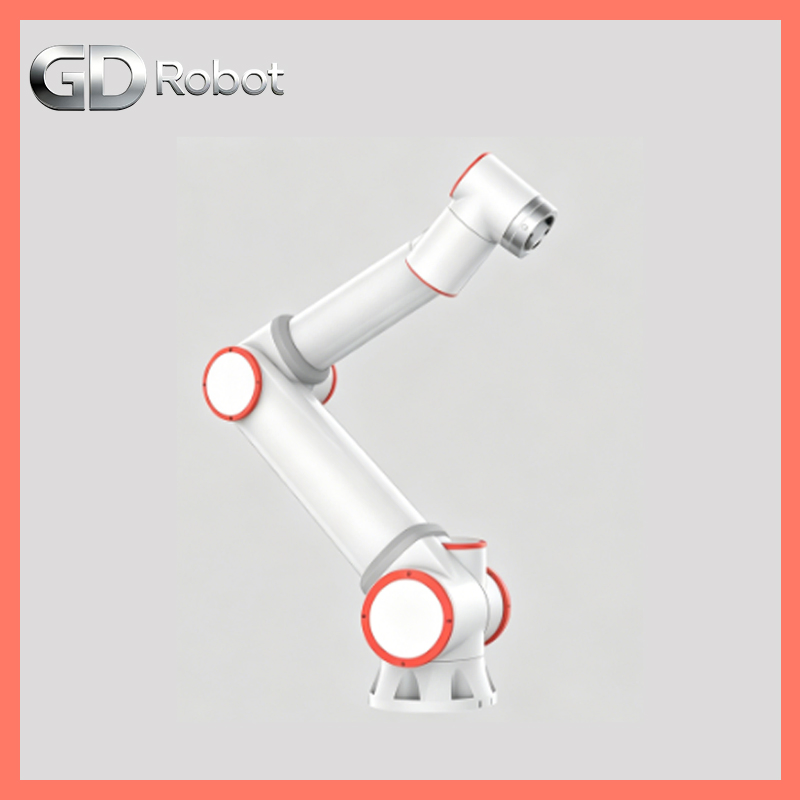

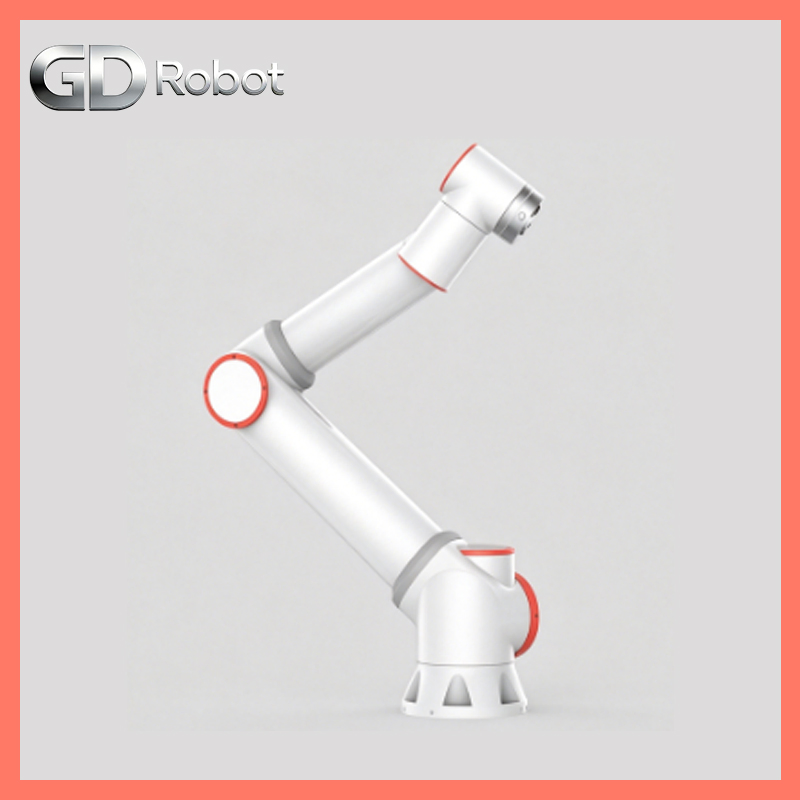

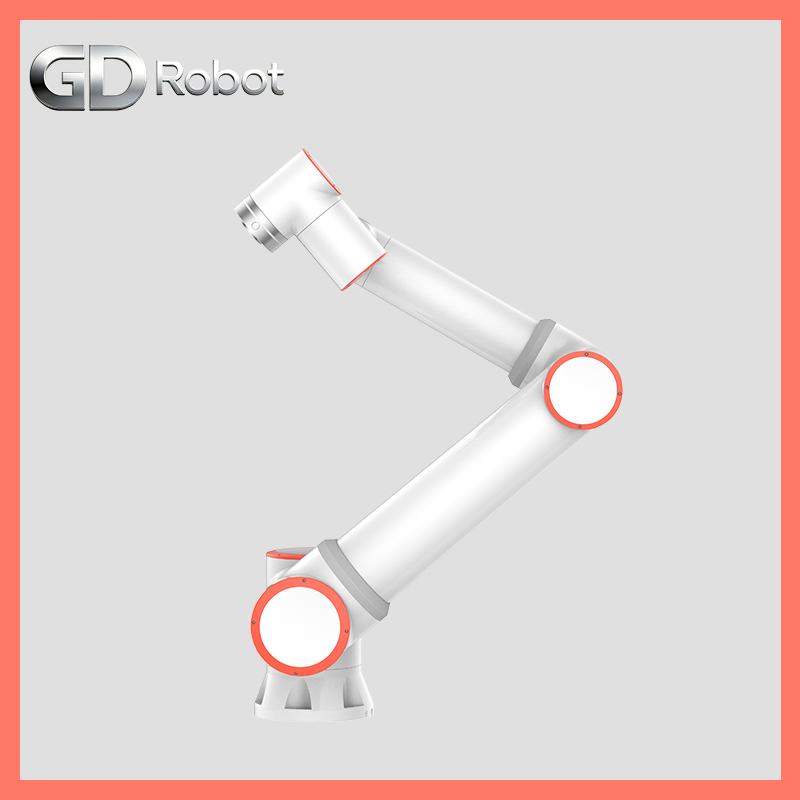

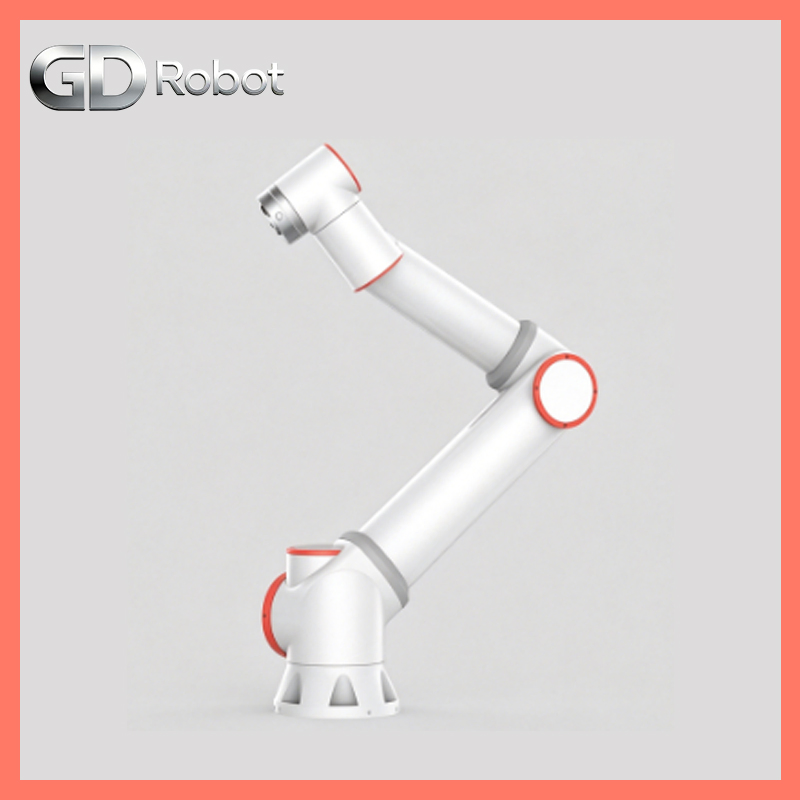

1. Payload 30kg collaborative robot arm with 1403mm reach, ideal for heavy-duty workshop loading tasks.
2. High-load cobot with max 35kg capacity, stable for industrial handling and heavy assembly applications.
3. ±0.1mm repeatability ensures reliable precision for high-volume loading and material handling operations.
4. IP54-rated design supports any mounting orientation, flexible for diverse heavy loading robot integration.
5. Low noise operation (<70dB), suitable for continuous use in high-demand industrial production environments.
6. Multi-control options including teach pendant and Web App available for factory automation.
| Parameter | Specification |
|---|---|
| Model | GD30 |
| Payload | 30kg (Max: 35kg) |
| Reach | 1403mm |
| Degrees of Freedom | 6 rotating joints |
| HMI | 10.1 inch teach pendant, mobile terminal or Web App |
| Pose Repeatability | ±0.1mm |
| Typical TCP Speed | 2m/s |
| Operating Temperature | 0-45°C |
| Materials | Aluminium, Steel |
| Typical Average Power | 600W |

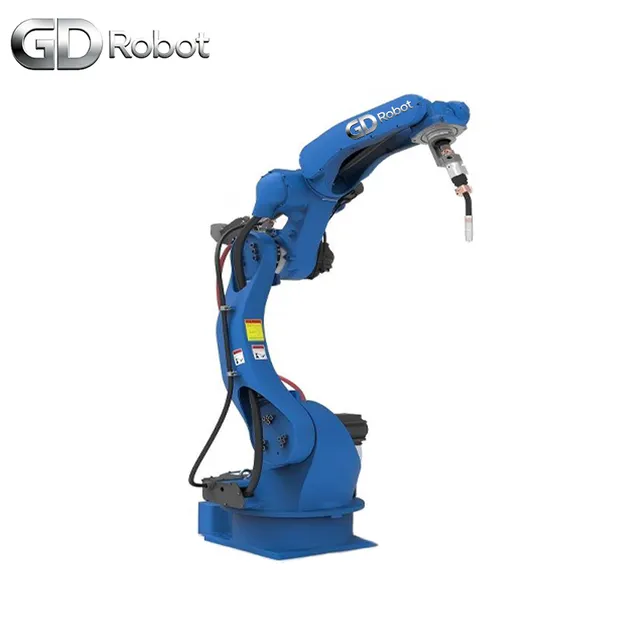

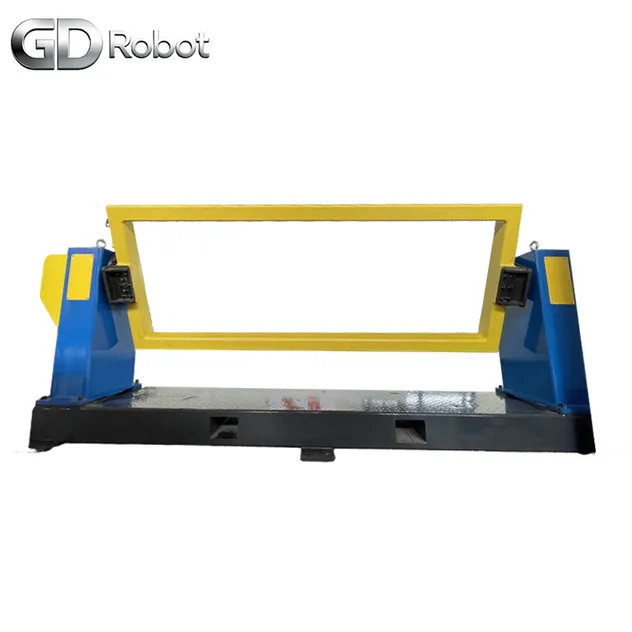

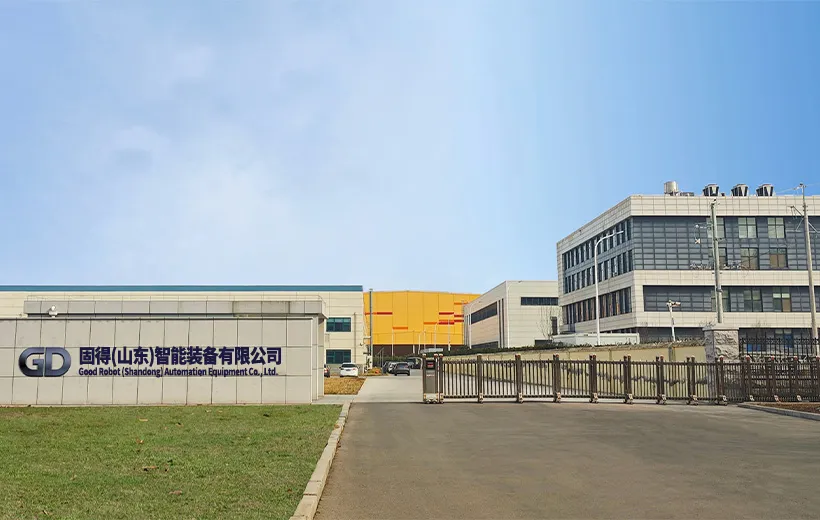

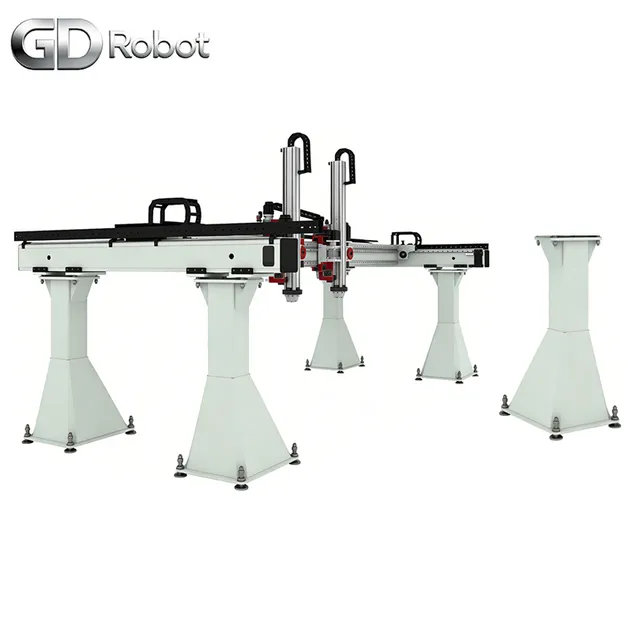

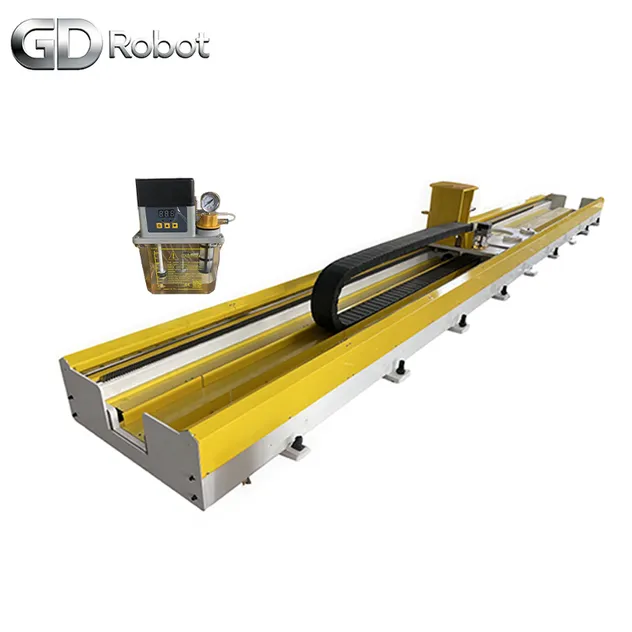

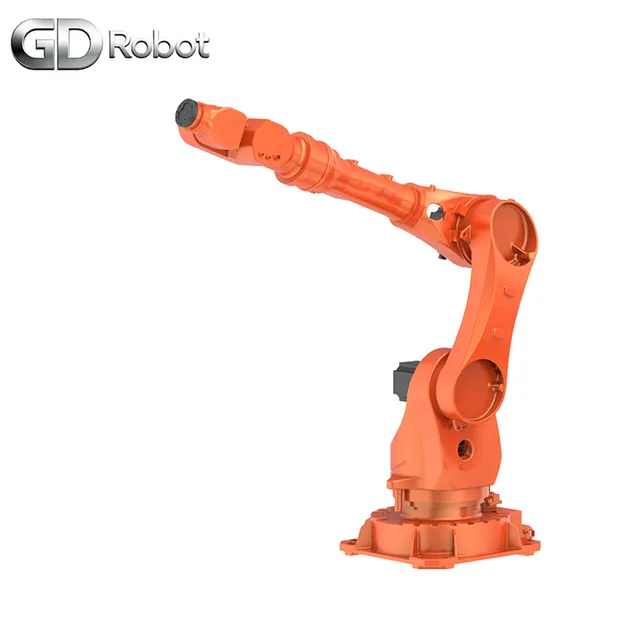

Established in 2018, this high-tech enterprise specializes in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. We provide customers with customized automation solutions across various industrial fields including welding, palletizing handling, metal processing, bending, and spraying.
With strong production capacity, the facility produces more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. We offer customized production as well as OEM/ODM services for global customers.
